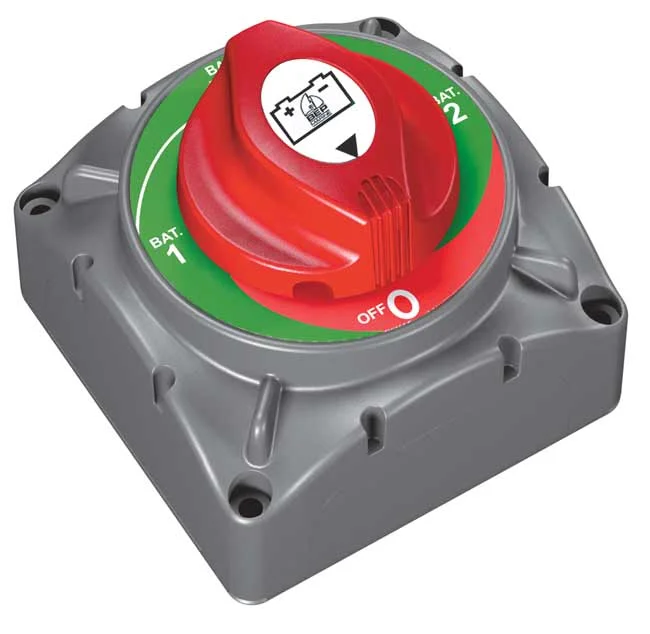

BEP Marine Heavy Duty Selector Switch

Heavy Duty Selector Switch

The 721 Battery Selector Switch is our heavy duty selector switch. Housed in the same module as the 720, it includes the same removable plates and back cover.

Product Details:

The 721 Battery Selector Switch is our heavy duty selector switch. Housed in the same module as the 720, it includes the same removable plates and back cover. While BEP Marine recommends isolated battery systems as outlined with our distribution clusters, the 721 offers a simple economical way of separating two batteries. Please note selector switches will not separate electronics from harmful engine starting spikes.

721 Specifications:

• Continuous Rating: 350Amps DC between common B1 or B2
• Continuous Rating: 500 Amps DC between common B1 + B2
• Intermittent Rating: 500 Amps DC
• Cranking Rating: 1500 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: Selector-Battery 1-2-Both-off
• Mounting: Recessed or surface
• Termination Stud Size: 3 x 10mm(3/8″)
• Tin plated copper studs and nuts
• Dimensions: 102 x 102 x 90H (4 x 4 x3.5H”)
• Ignition protected
