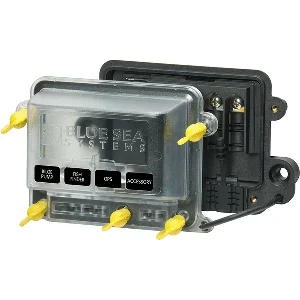

Blue Sea 2356100 – Water Resistant 100A Busbar with Cover

2356100 – Water Resistant 100A Busbar with Cover

Water-resistant bussing for harsh environments.  Built with wing screws for toolless access.

Features:

• Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 wires are used
  • Nests with other water-resistant 100A common busbars and ST-Blade water resistant fuse block for space-saving wiring
  • Ideal for positive distribution and for the collection of negative or AC ground circuits
  • Meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four (4) write-on circuit labels
  • Small format standard and custom labels are available
  • Wing-screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

• Cover – yes
• Maximum Voltage – 300V AC – 48V DC
• Terminal Stud – 1 x #10-32
• Continuous Rating – 100A AC or DC
• Bus Material – Tin-plated Copper
• Mounting Holes – Accepts 1/4″ (6mm) screws
• Terminal Screws – 4 x # 8-32
• Wire Size – Input – (1) 8 AWG to 4 AWG
• Wire Size – Load – (4) 16 AWG to 10 AWG

In the Box:

• 2356100 Busbar
• Instruction Manual

*Sold as an Individual
