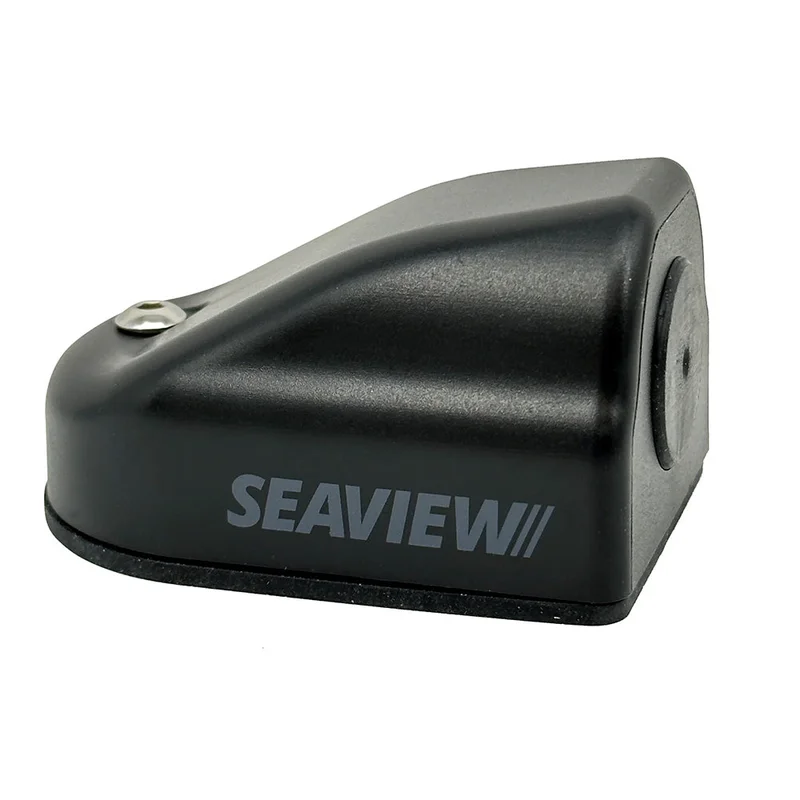

Seaview Horizontal (90) Cable Seal – Black [CG2090]

Description

Horizontal (90°) Cable Seal – Black

The Seaview horizontal (90-degree) cable seal is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53” (13.5mm). It has a plastic housing that is strong and impact-resistant with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with drill tubes allowing you to drill your custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6/IPX8 tested and approved.

Specifications:

• Type: Cable Glands
• Box Dimensions: 2″H x 3″W x 6″L WT: 0.3 lbs
• UPC: 850047035356
